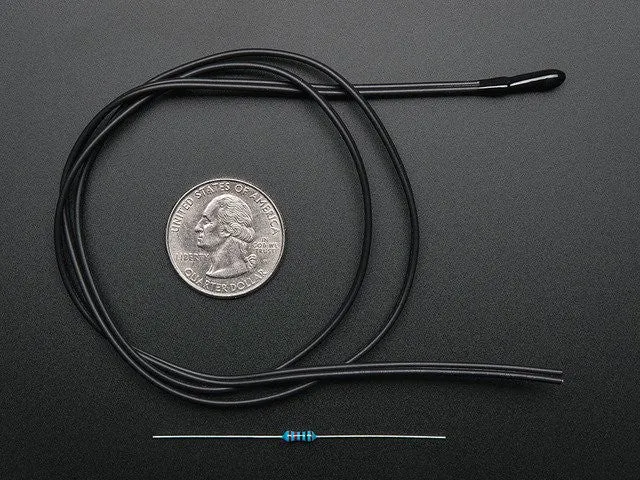

Need to measure something damp? This epoxy-coated precision 1% 10K thermistor is an inexpensive way to measure temperature in weather or liquids. The resistance in 25 °C is 10K ( - 1%). The resistance goes down as it gets warmer and goes up as it gets cooler. .
These are often used for air conditioners, water lines, and other places where they can get damp. The PVC coating of the wires is good up to 105 °C so this isn't good for very hot stuff.
We even toss in an additional 1% 10K resistor which you can use as calibration or for a resistor divider.
TECHNICAL DETAILS
- Resistance at 25 degrees C: 10K - 1%
- B25/50 = 3950 - 1%
- Thermal time constant <= 15 seconds
- Thermistor temperature range -55 °C to 125 °C
- 28 AWG PVC Wire
Dimensions:
- Diameter: 0.13”/ 3.3mm
- Length: At least 457mm / 18" long
