Bermad IR-410 Series Metal Hydraulically Operated Solenoid Control Valves with S.390 Coil

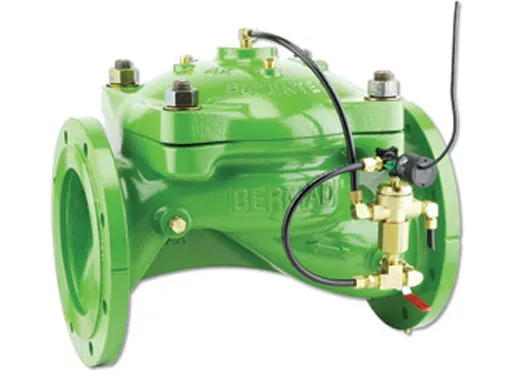

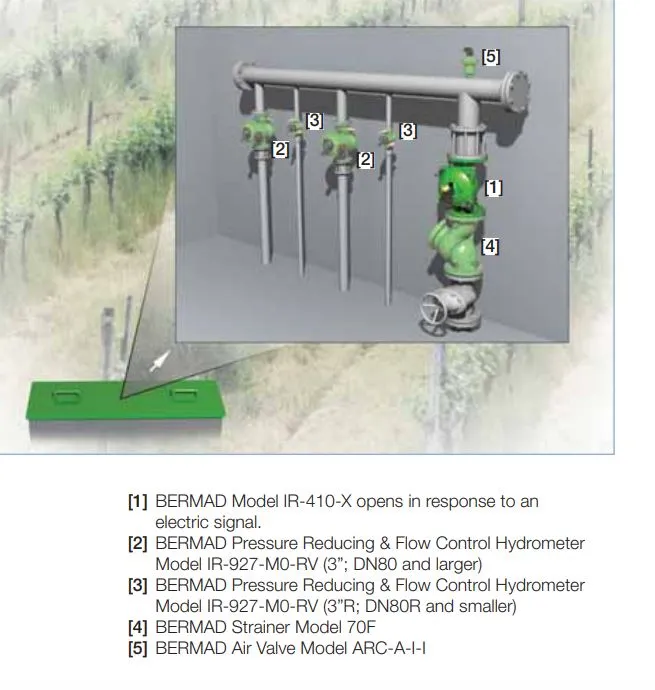

The Bermad IR-410-X Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to an electric signal. The valve can be configured in either normally closed or normally open, with a variety of solenoid voltages and designs.

APPLICATIONS

• Computerized Irrigation Systems
• Remote and/or Elevated Systems
• Distribution Centers
• Irrigation Machines
• Low Supplied Pressure Irrigation Systems

FEATURES

• Hydraulic Control Valve with Solenoid Control
  • Line pressure driven
  • Electrically controlled On/Off
  • Suitable also for remote and/or elevated systems
• Advanced Globe Hydro-Efficient Design
  • Unobstructed flow path
  • Single moving part
  • High flow capacity
• Fully Supported and Balanced Diaphragm
  • Requires low actuation pressure
  • Progressively restrains Valve closing
  • Prevents diaphragm distortion
• User-Friendly Design
  • Simple in-line inspection
  • Easy addition of control features

INSTALLATION

1. Ensure enough space around the valve assembly for future maintenance and adjustments.
2. Prior to valve installation, flush the pipeline to insure flow of clean fluid through the valve.
3. For future maintenance, install Isolation gate valves upstream and downstream from Bermad control valve.
4. Install the valve in the pipeline with the valve flow direction arrow in the actual flow direction.
5. For best performance, it is recommended to install the valve horizontally and upright.
6. After installation carefully inspect/correct any damaged accessories, piping, tubing, or fittings.
7. Cross-Check solenoid specifications with design requirements and solenoid/coil label. 8. Ensure approved cable protection. Confirm that the wires data meet solenoid specifications. Note: Energizing the solenoid coil when it is not fixed in its place, is dangerous and might burn the coil.
