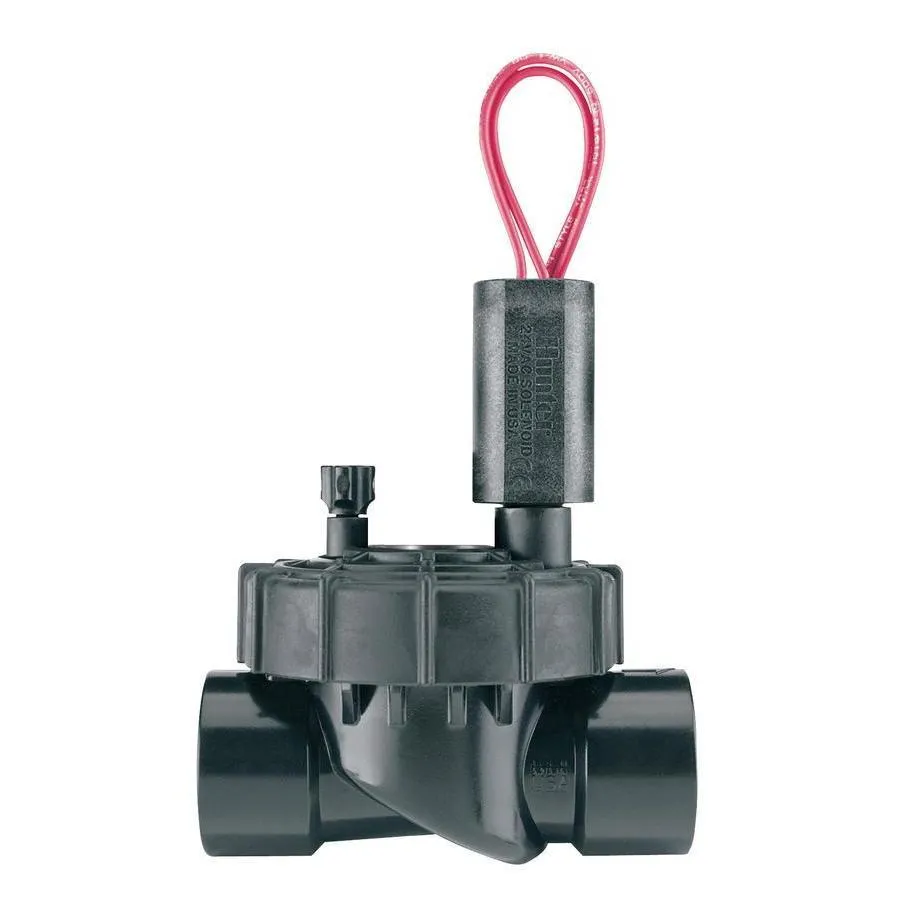

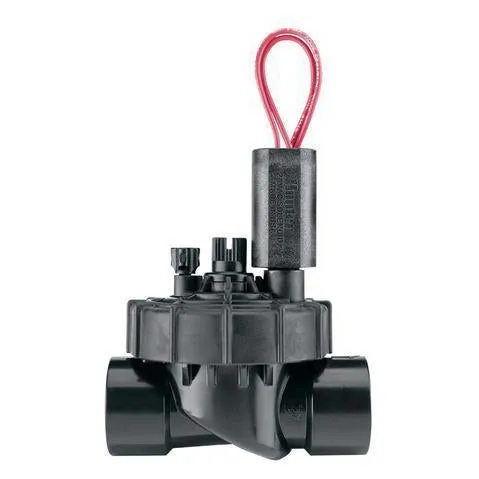

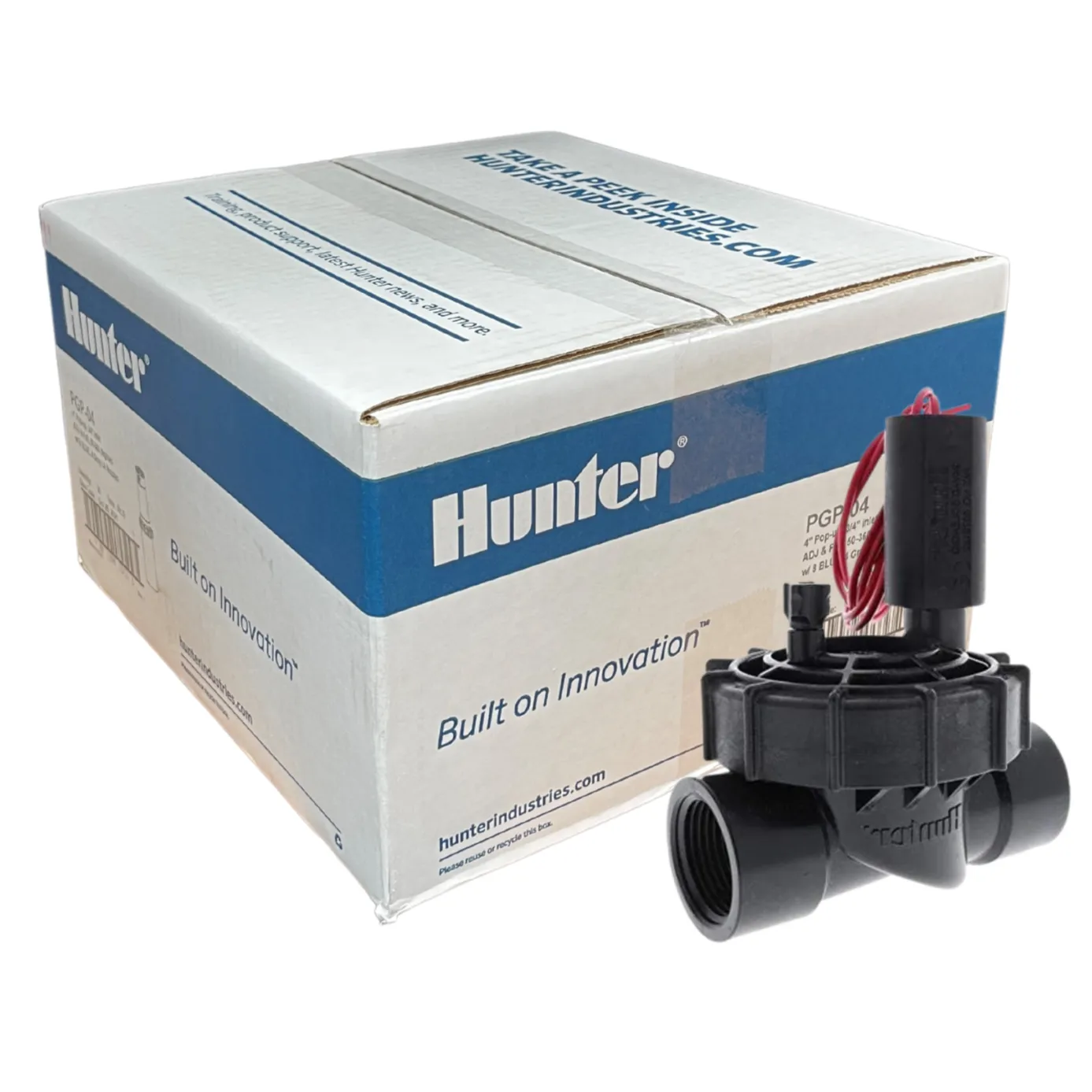

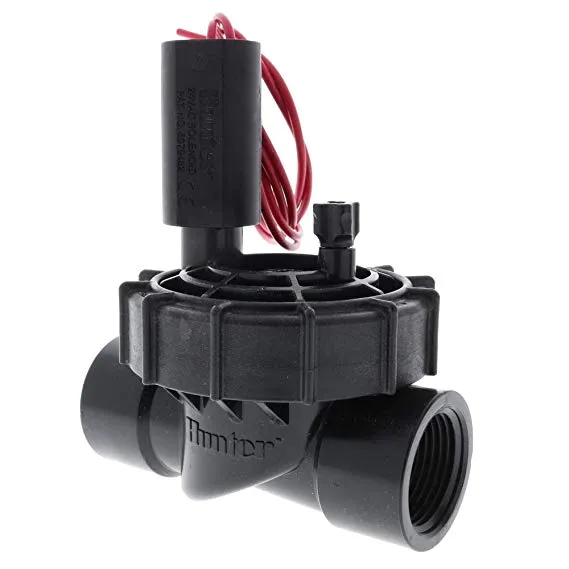

Hunter PGV 25mm Solenoid Valves - 20/Box of 20

The PGV Jar-Top offers convenience, reliability, and ease of service in a residential valve. The PGV Jar-Top can be serviced without using any tools. Even with this ease-of-maintenance the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system.

All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure.

CONFIGURATION OPTIONS:

• PGV-100JT - Female BSP - No Flow Control
• PGV-101JT -  Female BSP - With Flow Control
• PGV-100JTGS - Slip - No Flow Control

SPECIFICATIONS:

• Application: Residential
• Inlet/Outlet Diameter: 1" (25 mm)
• Height: 14 cm
• Length: 11 cm
• Width: 8 cm
• Flow rate: .05 - 9 m3/hr; 0.7 to 150 l/min
• Recommended pressure range: 1.5 to 10 bar; 150 to 1000 kPa
• 24 VAC solenoid (350 mA inrush, 190 mA holding, 60 cycles | 370 mA inrush, 210 mA holding, 50 cycles)
